| 分辨率 | 尺寸 (inch) |
產(chǎn)品圖 | 型 號 | 外形尺寸 WxHxT (mm) |
視域尺寸 WxH (mm) |
像素尺寸 WxH (mm) |
觸摸屏 | 接口模式 | 電壓 (V) |
控制器 |
|---|---|---|---|---|---|---|---|---|---|---|
| 240x320 | 2.8 |  |
LT028A-01A | 50.0x69.2x3.2 | 45.2x59.6 | 43.2x57.6 | - | 8/16-BIT MCU | 3.3 | ST7789V2 |
| 240x320 | 2.8 |  |

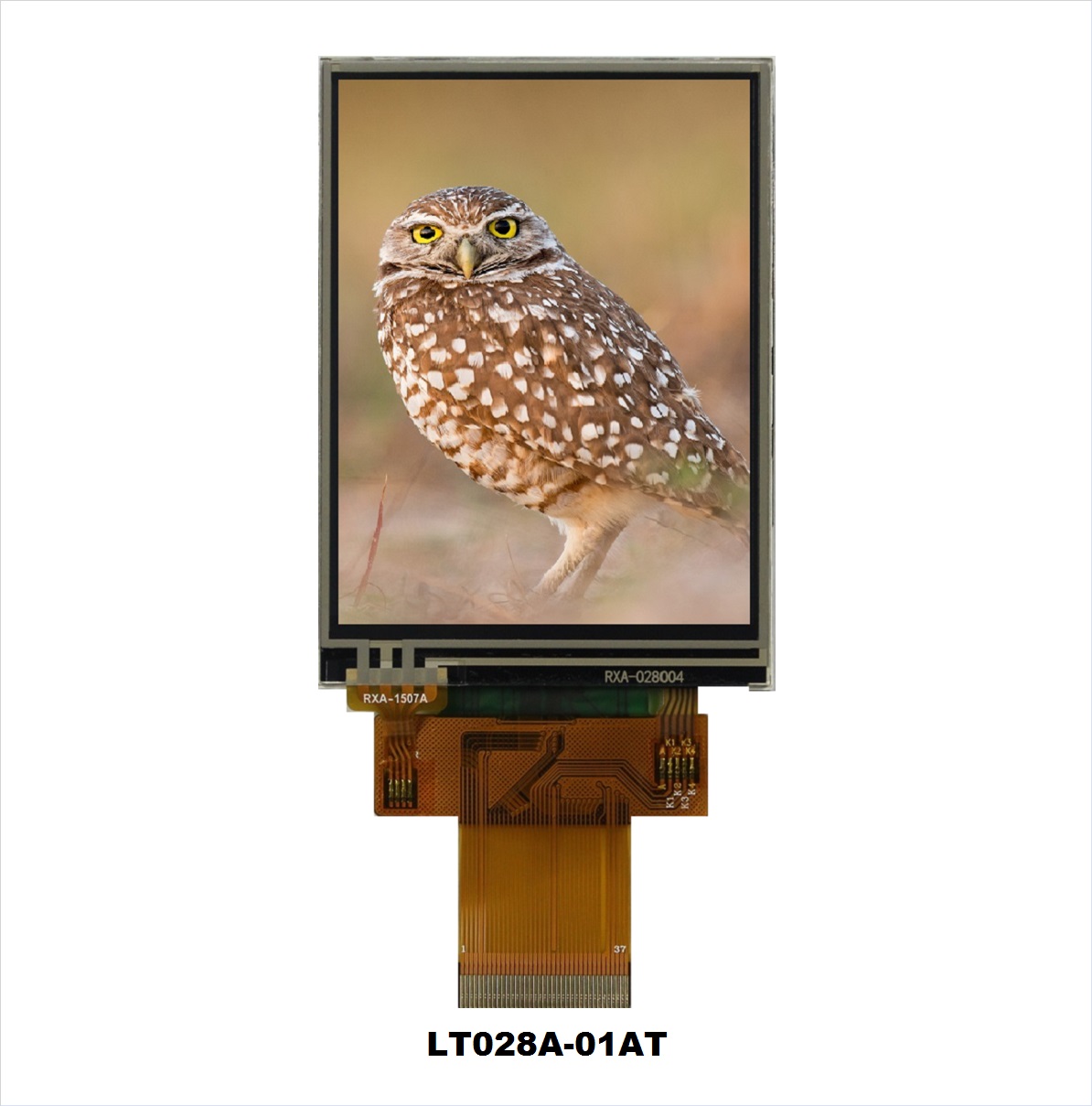

LT028A-01AT | 50.0x69.2x4.3 | 45.2x59.6 | 43.2x57.6 | RTP | 8/16-BIT MCU | 3.3 | ST7789V2 |
| 320x240 | 3.5 |  |
LT035A-02A | 76.9x63.9x3.3 | 73.1x55.5 | 70.08x52.56 | - | RGB | 3.3 | HX8238-D |
| 320x240 | 3.5 |  |

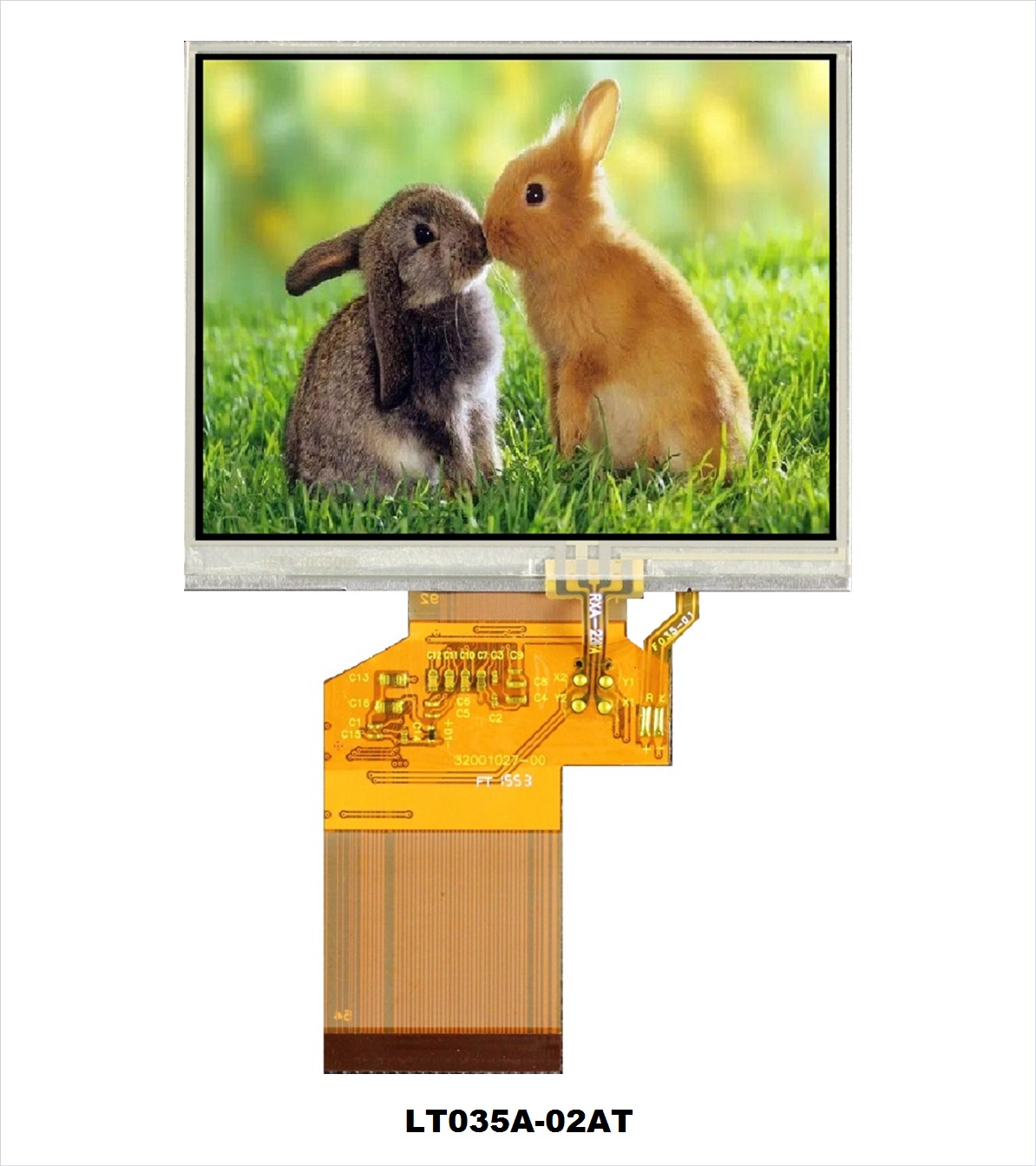

LT035A-02AT | 76.9x63.9x4.4 | 73.1x55.5 | 70.08x52.56 | RTP | RGB | 3.3 | HX8238-D |
| 320x240 | 3.5 |  |

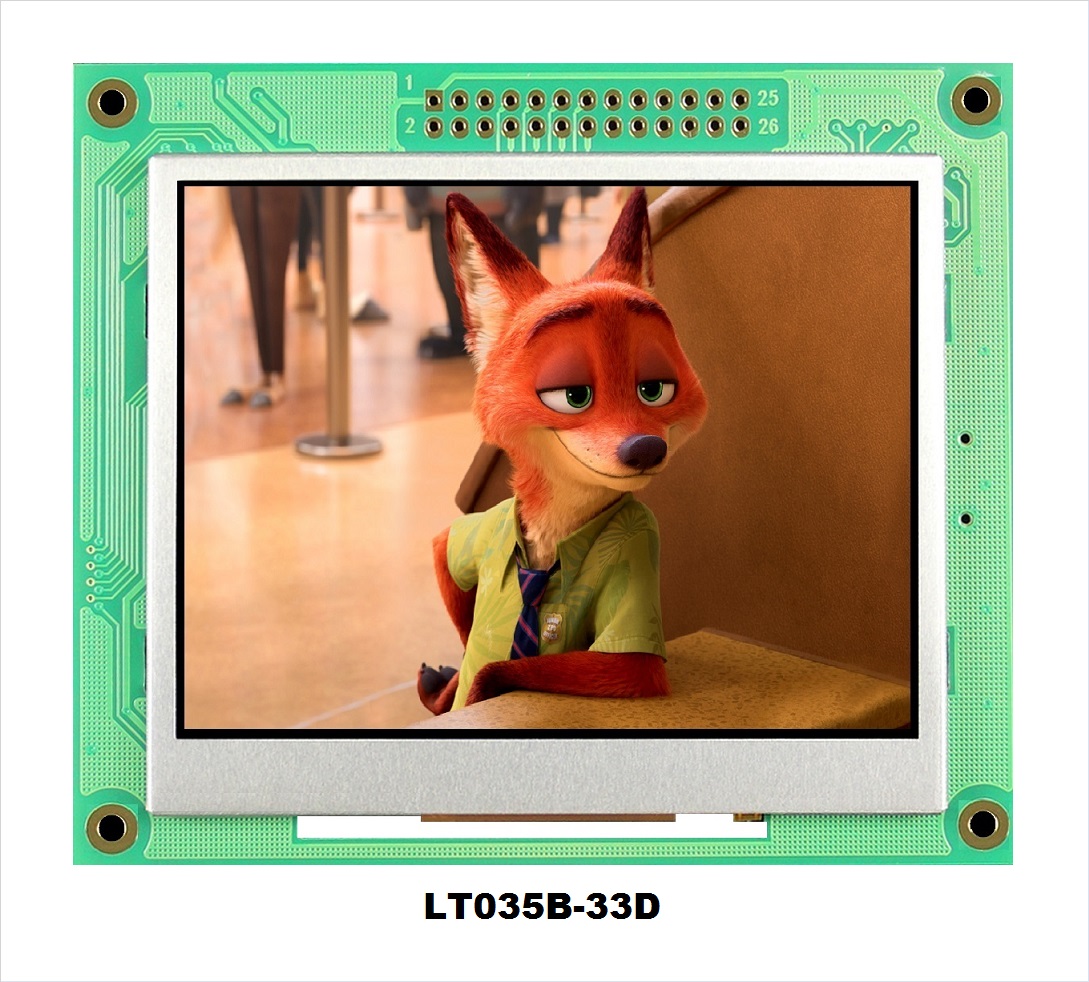

LT035B-33D | 94.0x80.0x9.8 | 72.4x54.6 | 70.08x52.56 | - | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |
LT035B-33DT | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |

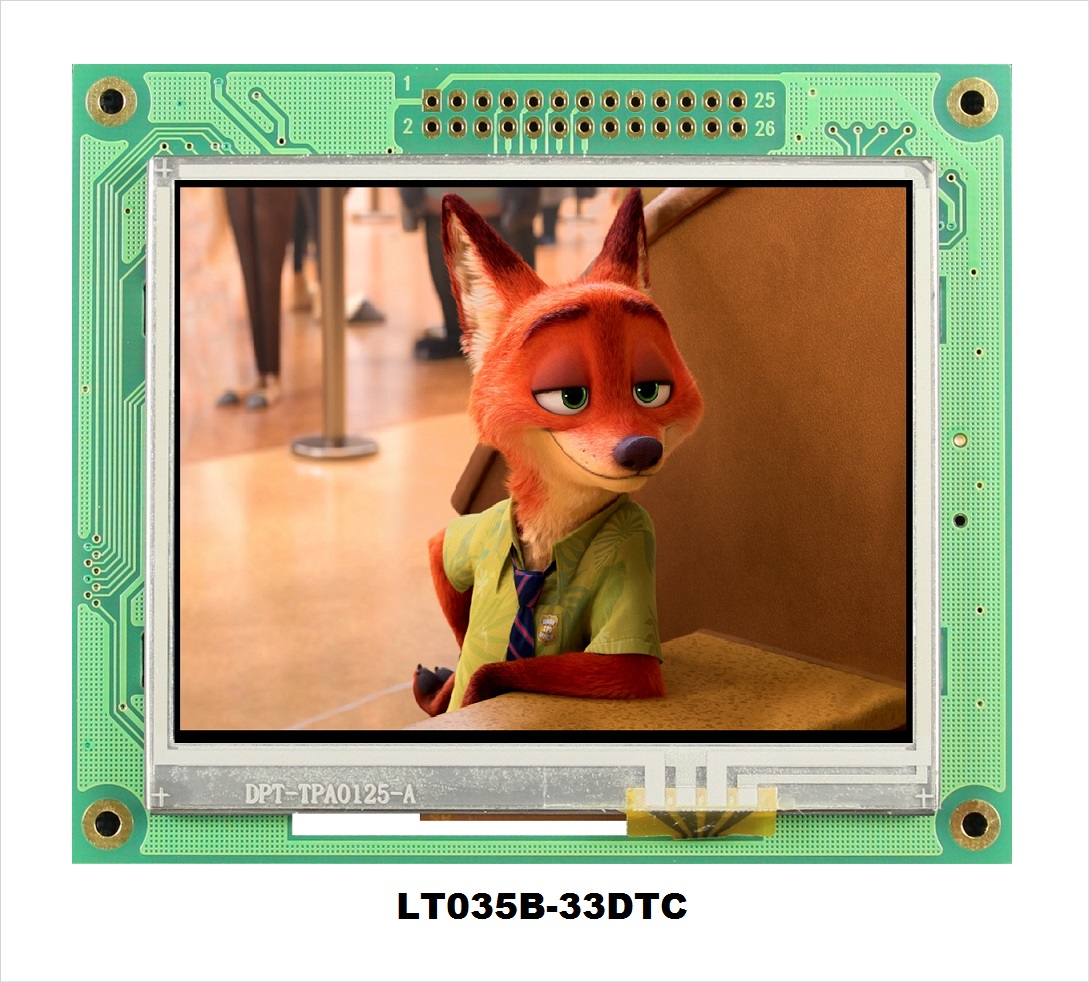

LT035B-33DTC | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |
LT035B-50D | 94.0x80.0 x9.8 | 72.4x54.6 | 70.08x52.56 | - | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 320x240 | 3.5 |  |
LT035B-50DT | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 320x240 | 3.5 |  |
LT035B-50DTC | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 480x272 | 4.3 |  |
LT043A-04A | 105.4x67.2x3.0 | 98.8x57.6 | 95.04x53.856 | - | RGB | 3.3 | ST7282 |
| 480x272 | 4.3 |  |

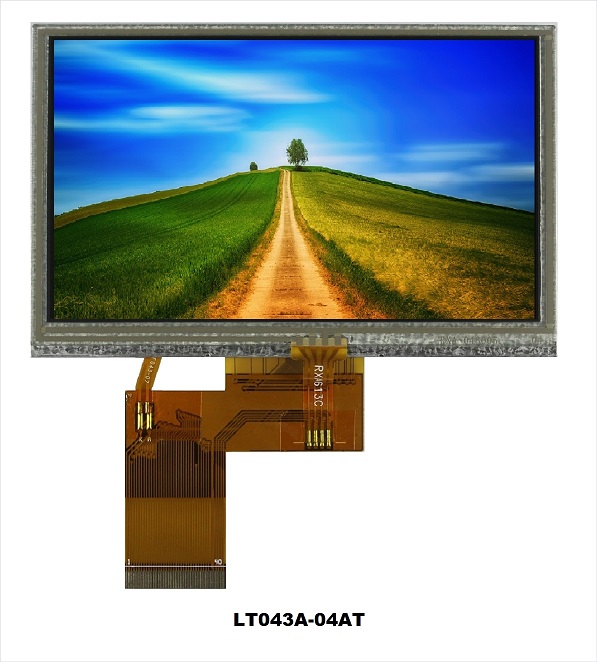

LT043A-04AT | 105.4x67.2x4.1 | 98.7x57.4 | 95.04x53.856 | RTP | RGB | 3.3 | ST7282 |
| 480x272 | 4.3 |  |
LT043C-33A | 117.0x80.2x9.5 | 97.6x56.6 | 95.04x53.86 | - | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |

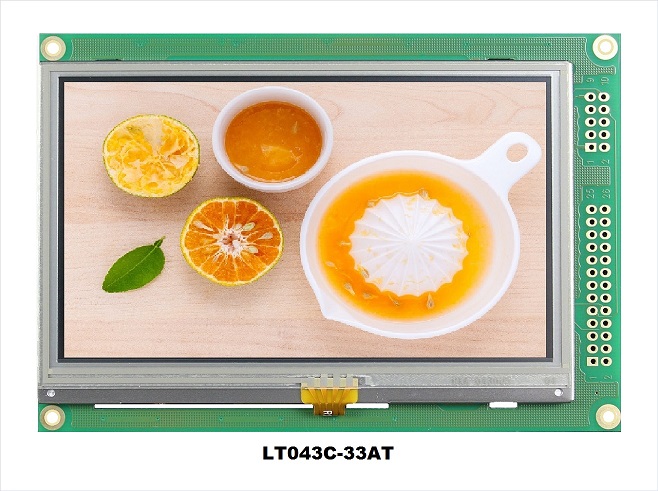

LT043C-33AT | 117.0x 80.2x10.5 | 97.6x56.6 | 95.04x53.86 | RTP | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |

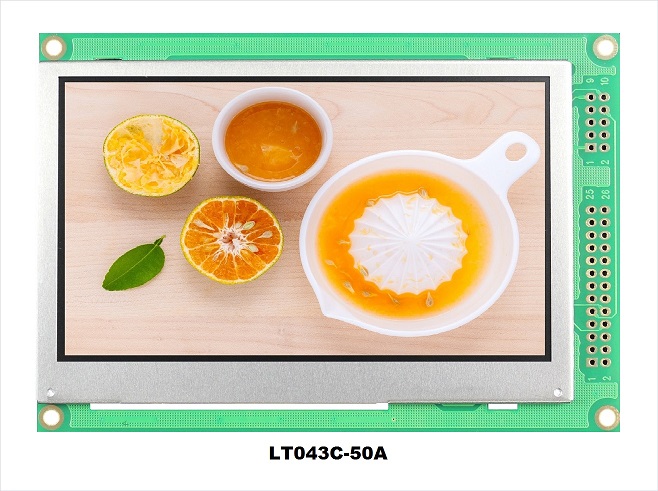

LT043C-50A | 117.0x80.2x9.5 | 97.6x56.6 | 95.04x53.86 | - | 8/16-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 480x272 | 4.3 |  |
LT043C-50AT | 117.0x80.2x10.5 | 97.6x56.6 | 95.04 x 53.86 | 8/16-BIT MCU, SPI | 3.3-5.5 | RA8875 | |
| 480x272 | 4.3 |  |
LT043D-33A | 123.0x70.0x9.5 | 97.6x56.6 | 95.04x53.856 | - | 8-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |
LT043D-33AT | 123.0x70.0x10.5 | 97.6x56.6 | 95.04x53.856 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |
LT043D-50A | 123.0x70.0x9.5 | 97.6x56.6 | 95.04x53.856 | - | 8-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 480x272 | 4.3 |  |
LT043D-50AT | 123.0x70.0x10.5 | 97.6x56.6 | 95.04x53.856 | RTP | 8-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 240x128 | 5 |  |
LT050A-02B | 144.0x104.0x14.5 | 113.9 x 65.2 | 110.88x59.136 | - | 8-BIT MCU | 3.3-5.5 | UCi6963 |
| 480x272 | 5 |  |
LT050B-01B | 120.7x75.8x2.9 | 113.5x65.5 | 110.88x62.832 | - | RGB | 3.3 | ILI6480BQ |
| 480x272 | 5 |  |

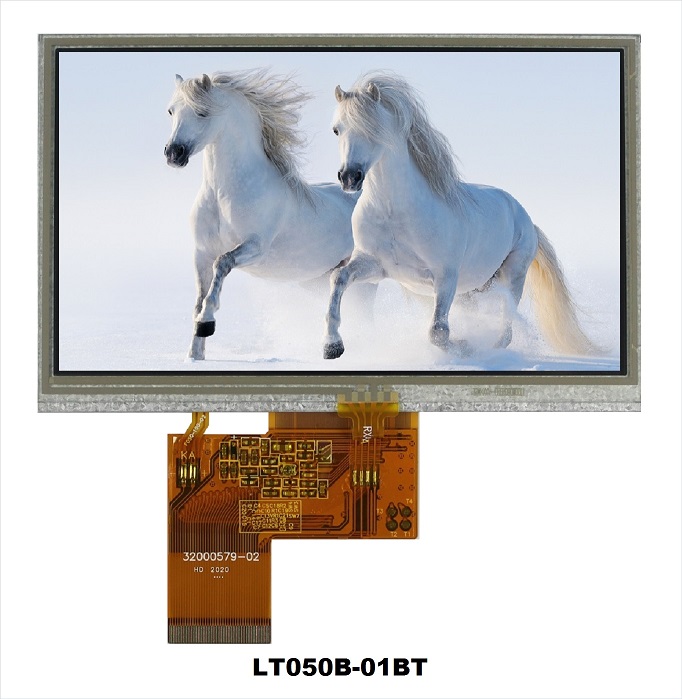

LT050B-01BT | 120.7x75.8x4.0 | 110.88x62.832 | 110.88x62.832 | RTP | RGB | 3.3 | ILI6480BQ |
| 800x480 | 5 |  |

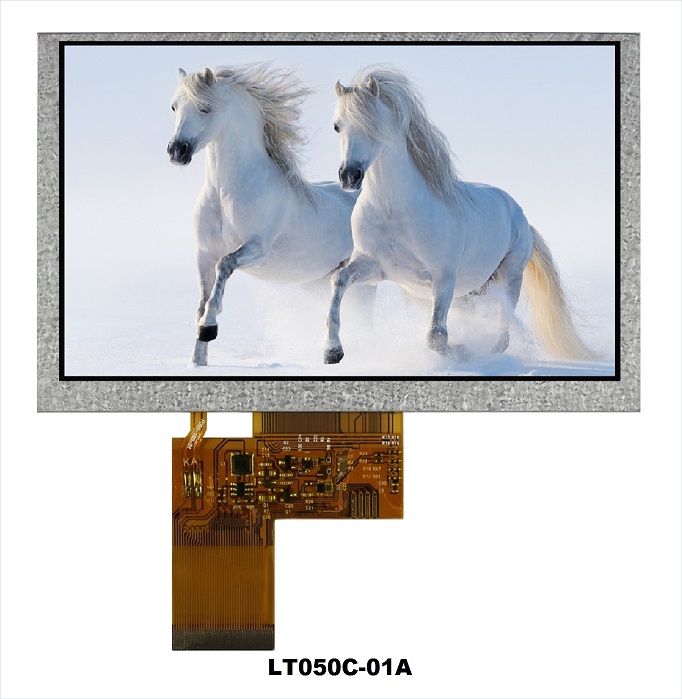

LT050C-01A | 120.7x75.9x3.0 | 110.7x67.4 | 108.0x64.8 | - | RGB | 3.3 | ILI6122 + ILI5960 |
| 800x480 | 5 |  |

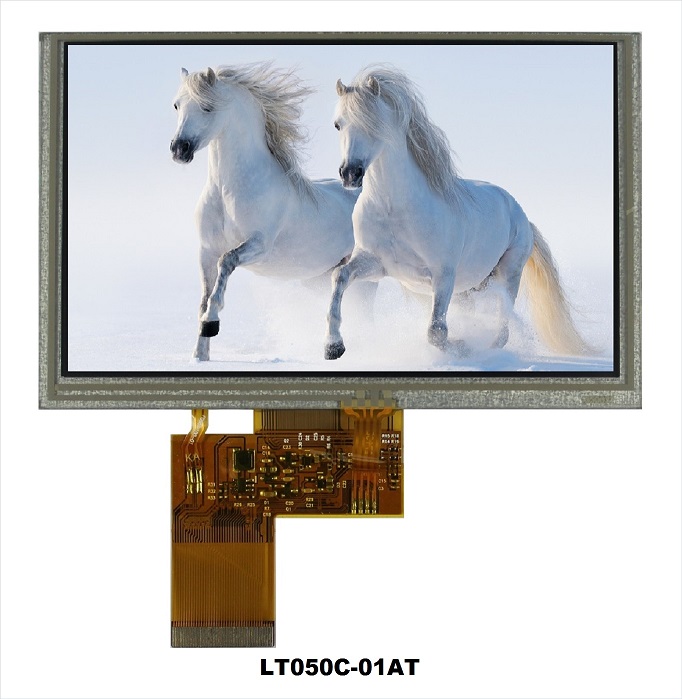

LT050C-01AT | 120.7x75.9x4.1 | 110.7x67.4 | 108.0x64.8 | RTP | RGB | 3.3 | ILI6122 + ILI5960 |
| 800x480 | 5 |  |
LT050D-33A | 142.0x81.0x11.0 | 110.0x66.8 | 108.0x64.8 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 800x480 | 5 |  |
LT050D-33AT | 142.0x81.0x11.0 | 110.0x66.8 | 108.0x64.8 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 320x240 | 5.7 |  |
LT057A-01A | 126.5x102.0x6.0 | 118.5x89.4 | 115.2x86.4 | - | RGB | 3.3 | HX8218+HX8615 |
| 320x240 | 5.7 |  |
LT057B-33C | 150.0x114.0 X13.0 | 118.0x88.0 | 115.2x86.4 | - | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |
LT057B-33CT | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |

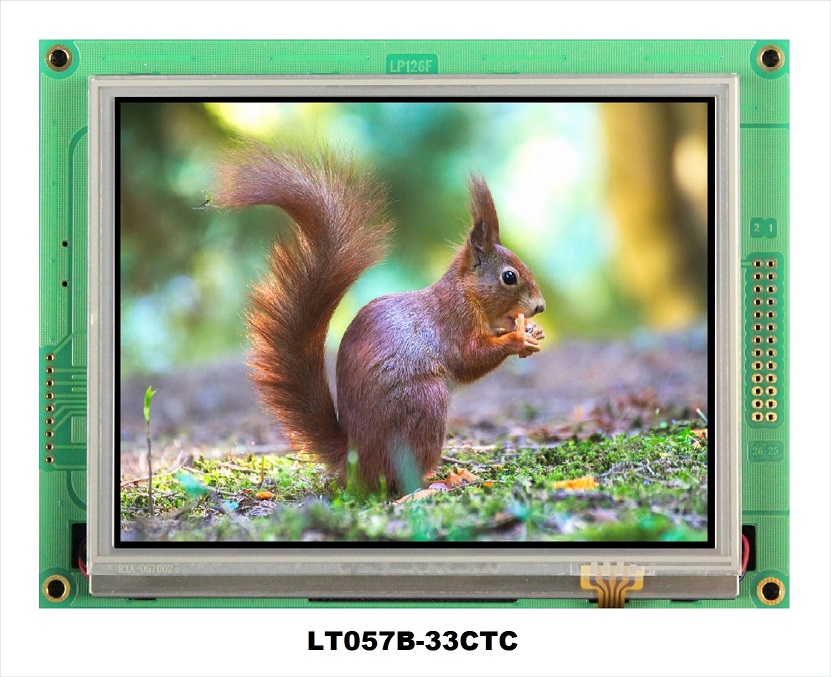

LT057B-33CTC | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |
LT057B-50B | 150.0x114.0x13.0 | 118.0x88.0 | 115.2x86.4 | - | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |
LT057B-50BT | 150.0x114.0 x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |
LT057B-50BTC | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |
LT057D-33A | 160.0x112.0x13.0 | 118.0x88.8 | 115.2x86.4 | - | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 320x240 | 5.7 |  |
LT057D-33AT | 160.0x112.0x14.5 | 118.0x88.8 | 115.2x86.4 | RTP | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 320x240 | 5.7 |  |
LT057D-50A | 160.0x112.0x13.0 | 118.0x88.8 | 115.2x86.4 | - | 8/16-BIT MCU, SPI | 5 | RA8875 |
| 320x240 | 5.7 |  |
LT057D-50AT | 160.0x112.0x14.5 | 118.0x88.8 | 115.2x86.4 | RTP | 8/16-BIT MCU, SPI | 5 | RA8875 |
| 800x480 | 7 |  |
LT070A-01A | 164.9x100.0x5.5 | 157.0x89.6 | 154.08x85.92 | - | RGB | 3.3 | EK9713CA+EK73002AB |
| 800x480 | 7 |  |

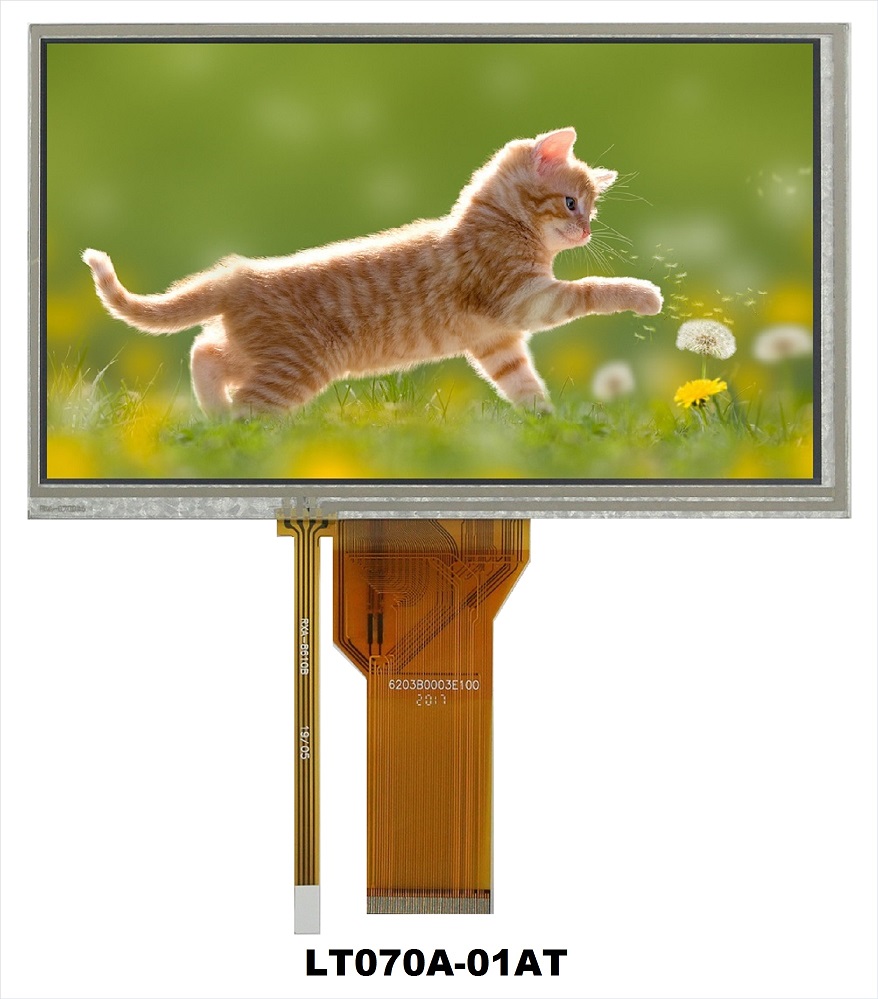

LT070A-01AT | 164.9x100.0x6.6 | 157.0x89.6 | 154.08x85.92 | RTP | RGB | 3.3 | EK9713CA+EK73002AB |
| 800x480 | 7 |  |
LT070A-02A | 164.9x100.0x5.5 | 157.0x89.6 | 154.08x85.92 | - | RGB | 3.3 | EK9713CA+EK73002AB |
| 800x480 | 7 |  |
LT070A-02AT | 164.9x100.0x6.6 | 157.0x89.6 | 154.08x85.92 | RTP | RGB | 3.3 | EK9713CA+EK73002AB |
| 1024x600 | 7 |  |
LT070B-01A | 164.9x100.0x5.5 | 157.0x89.6 | 154.21x85.92 | - | RGB | 3.3 | NT51008Q+NT51003B |
| 1024x600 | 7 |  |

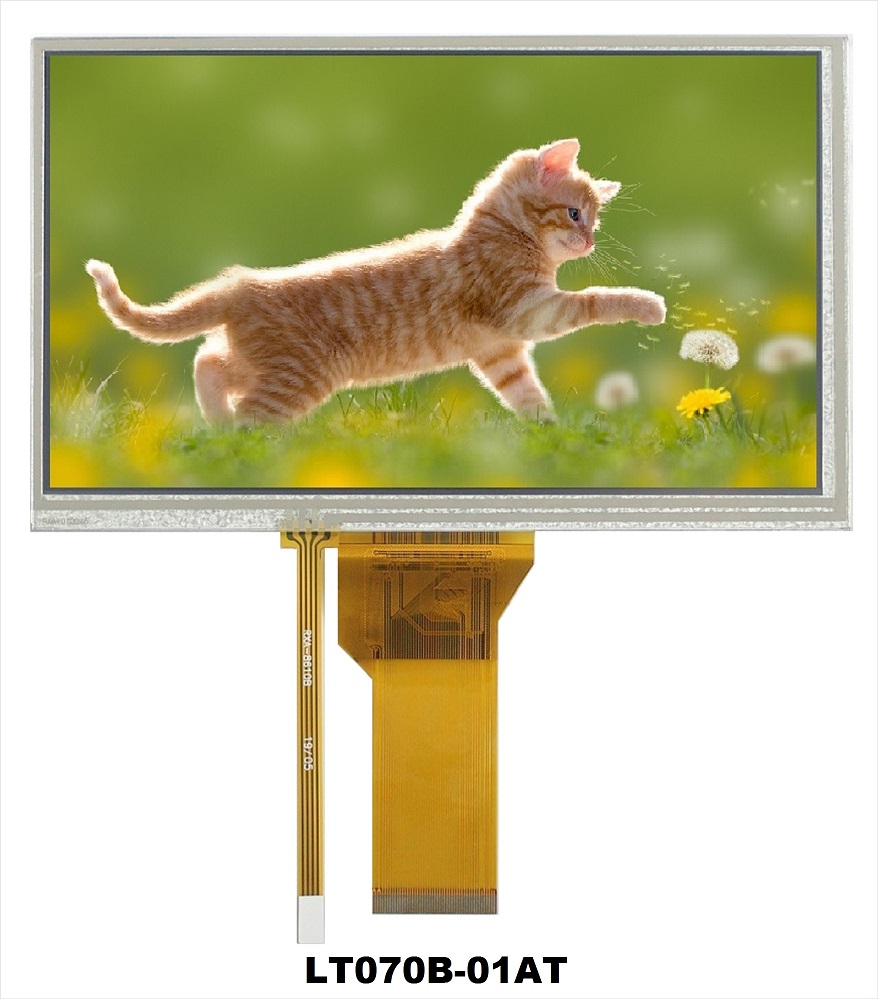

LT070B-01AT | 164.9x100.0x6.6 | 157.0x89.6 | 154.21x85.92 | RTP | RGB | 3.3 | NT51008Q+NT51003B |
| 1024x600 | 7 |  |

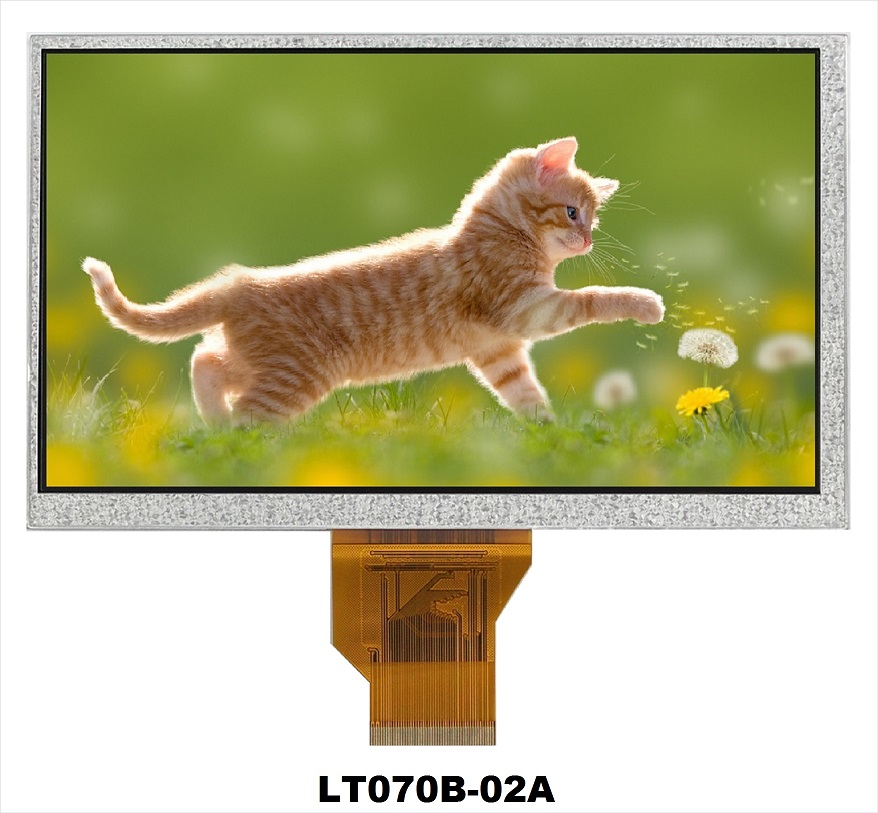

LT070B-02A | 164.9x100.0x5.5 | 157.0x89.6 | 154.21x85.92 | - | RGB | 3.3 | NT51008Q+NT51003B |
| 1024x600 | 7 |  |

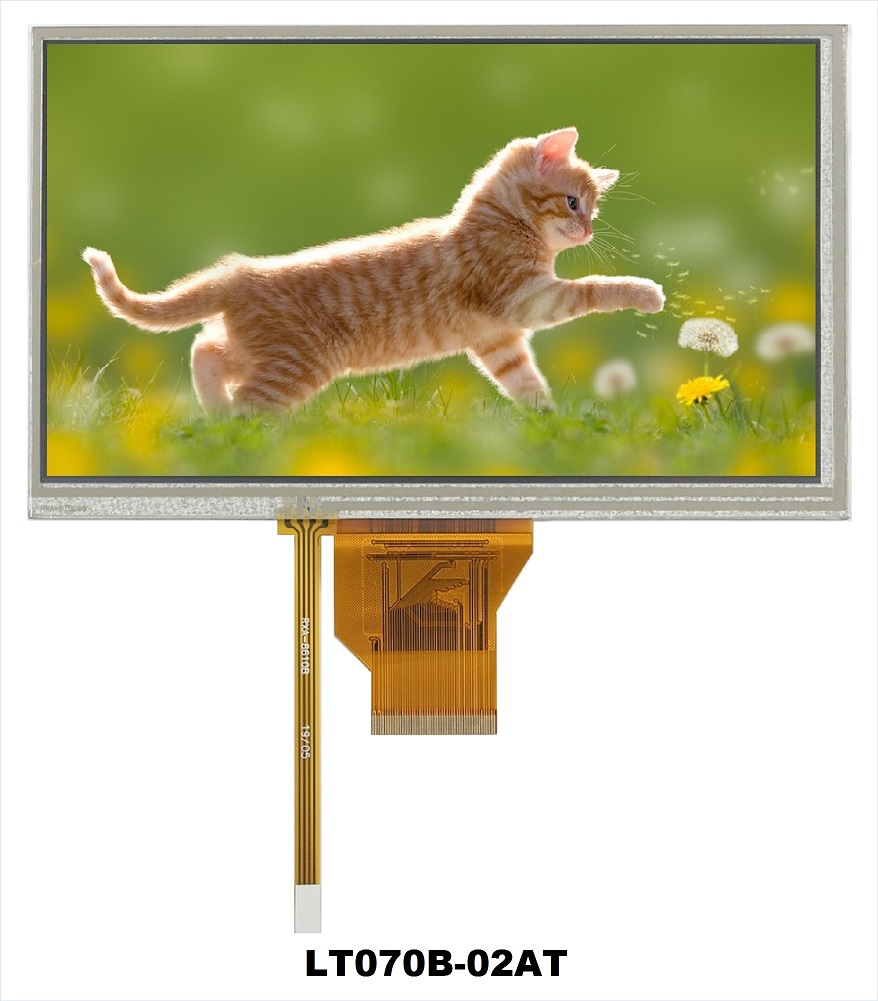

LT070B-02AT | 164.9x100.0x6.6 | 157.0x89.6 | 154.21x85.92 | RTP | RGB | 3.3 | NT51008Q+NT51003B |
| 1024x600 | 7 |  |
LT070B-03A | 164.9x100.0x5.5 | 157.0x89.6 | 154.21x85.92 | - | LVDS | 3.3 | NT51008Q+NT51003B |
| 1024x600 | 7 |  |

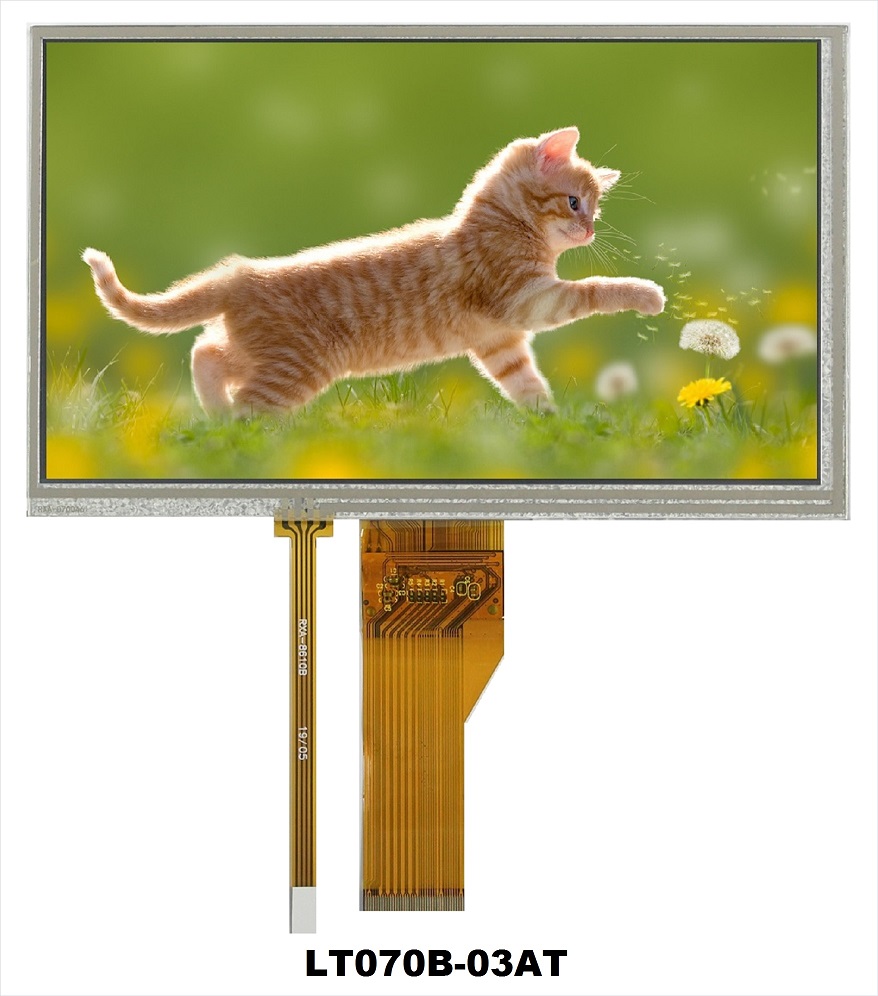

LT070B-03AT | 164.9x100.0x6.6 | 157.0x89.6 | 154.21x85.92 | RTP | LVDS | 3.3 | NT51008Q+NT51003B |
| 800x480 | 7 |  |

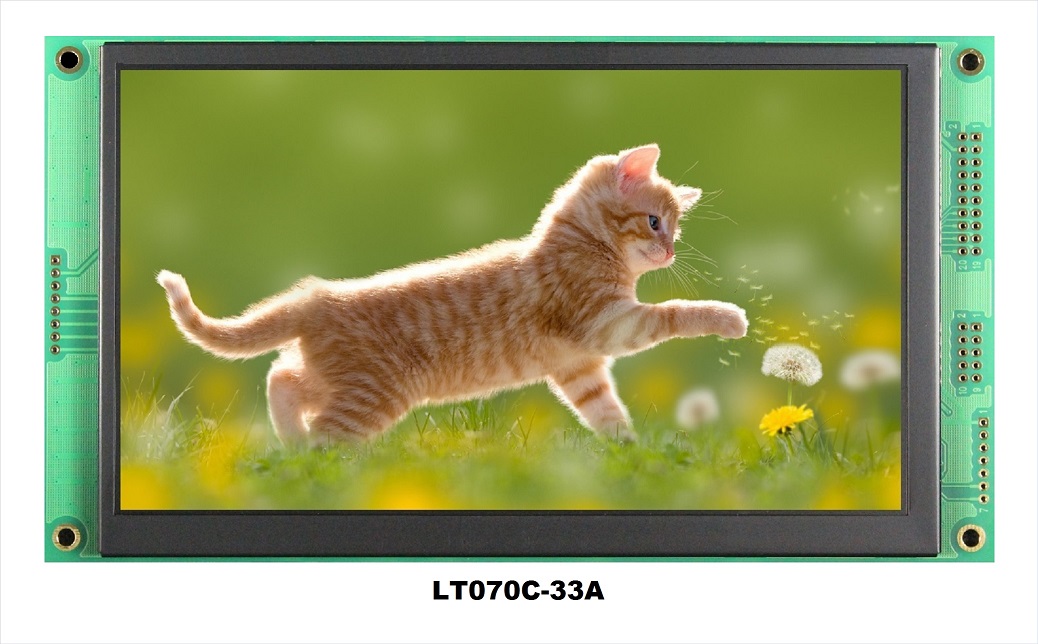

LT070C-33A | 190.0x105.0x12.5 | 156.4x89.0 | 154.08x85.92 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 800x480 | 7 |  |

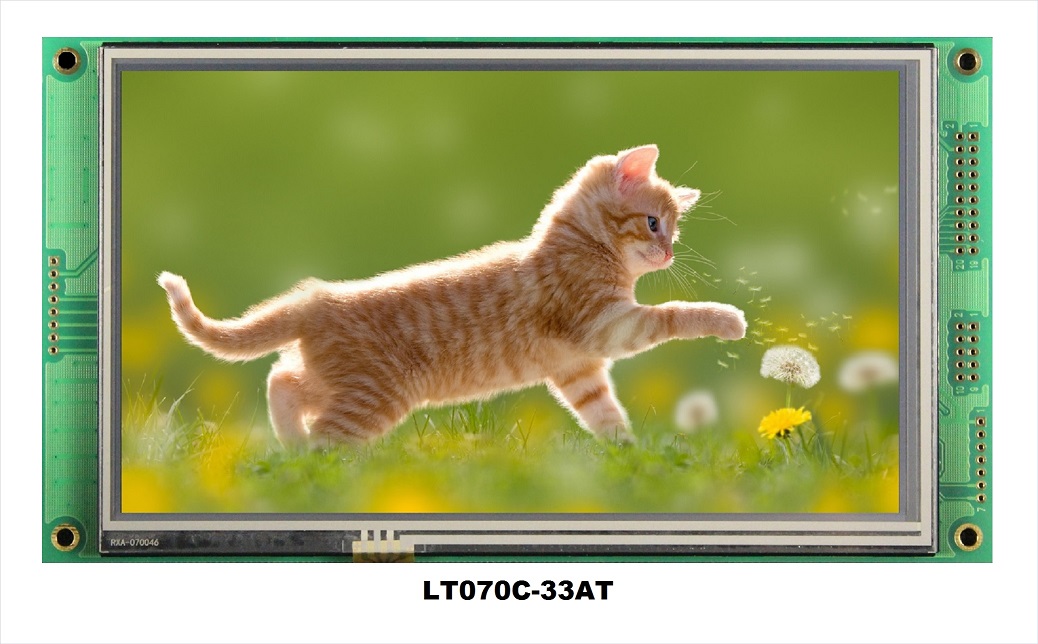

LT070C-33AT | 190.0x105.0x13.5 | 156.4x89.0 | 154.08x85.92 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 1024x600 | 7 |  |
LT070D-33A | 190.0x105.0x12.5 | 156.4x89.0 | 154.21x85.92 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7686 |
| 1024x600 | 7 |  |
LT070D-33AT | 190.0x105.0x13.5 | 156.4x89.0 | 154.08x85.92 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7686 |
| 1024x600 | 10.1 |  |
LT101A-01A | 235.0x143.0x5.0 | 226.4x128.7 | 222.72x125.28 | - | RGB | 3.3 | HX8282-A+HX8696-A |
| 1024X600 | 10.1 |  |
LT101A-01AT | 235.0x143.0x6.5 | 226.4x128.7 | 222.72x125.28 | RTP | RGB | 3.3 | HX8282-A+HX8696-A |
| 1024X600 | 10.1 |  |
LT101A-02A | 235.0x143.0x4.5 | 226.0x128.5 | 222.72x125.28 | - | LVDS | 3.3 | HX8282-A+HX8696-A |
| 800x600 | 10.4 |  |
LT104A-01A | 228.4x175.4x5.9 | 214.2x162.5 | 211.2x158.4 | - | RGB | 3.3 | - |
| 1024x768 | 10.4 |  |
LT104B-01A | 236.0x174.3x8.1 | 213.2x160.5 | 211.2x158.4 | - | LVDS | 3.3 | HX8282-A+HX8696-A |
